Sistem de supraveghere Hikvision 4 camere interior 5MP ColorVU, lumina alba 20m, DVR 4 canale TurboHD, accesorii SafetyGuard Surveillance
Treceti mouse-ul peste poza pentru marire
Descriere Sistem supraveghere Hikvision 4 camere interior

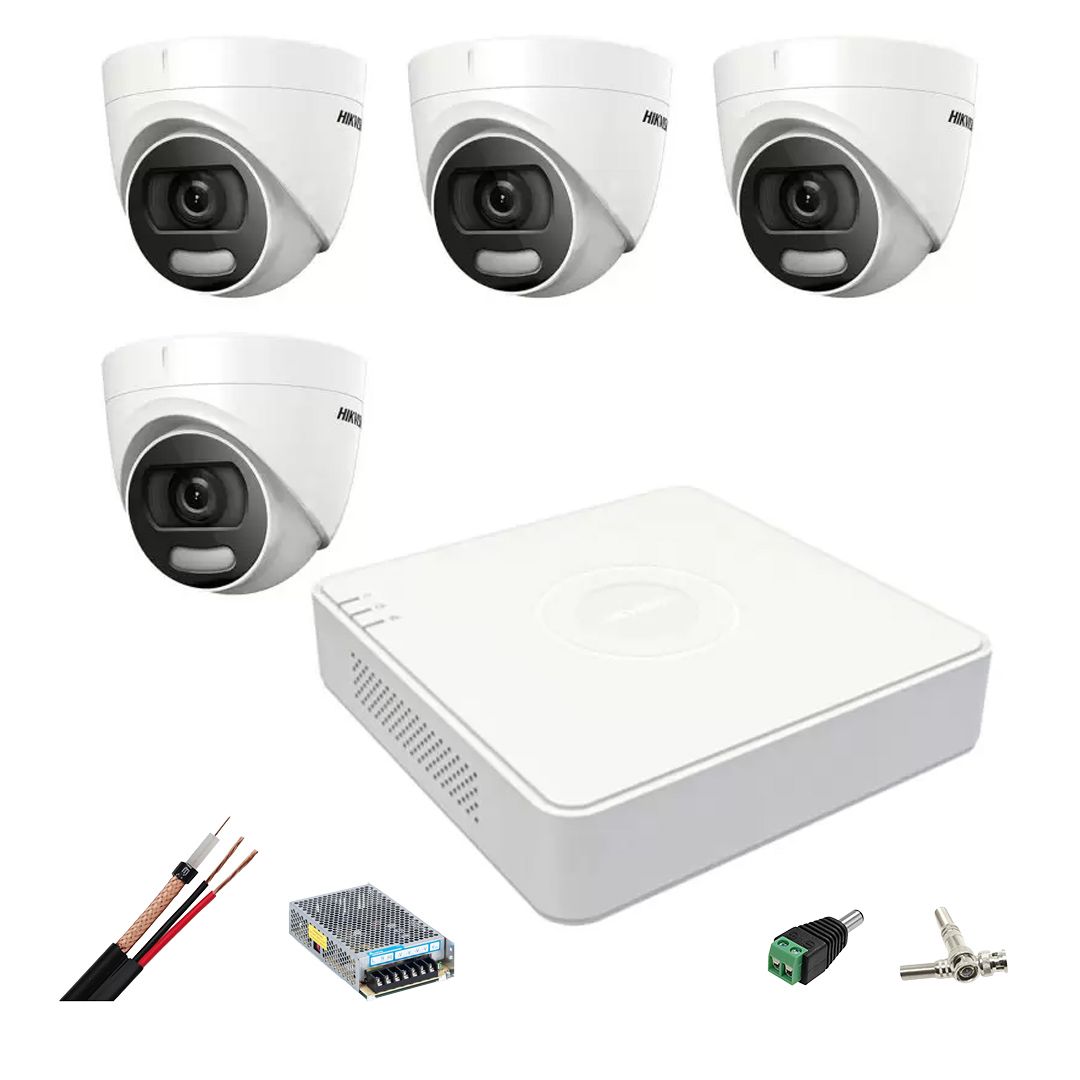

Sistemul contine:
- 4x Camera AnalogHD 5MP ColorVU, lentila 2.8mm, lumina alba 20m
- 1x DVR 4 canale Hikvision TurboHD, Audio – DS-7104HUHI-K1(S)
- 1x Cablu coaxial cu alimentare 100m
- 1x Sursa alimentare 12V 12.5A
- 4x Mufa TATA cu surub
- 8x Conectori BNC
Nu include hard disk!
Camera AnalogHD 5MP ColorVU, lentila 2.8mm, lumina alba 20m
Camera de supraveghere de la Hikvision are o rezolutie de 5MP si ofera imagini color 24/7. Este dotata cu lumina alba care favorizeaza vizibilitatea pe timp de noapte de pana la 20m si lentila fixa de 2.8mm care ofera un unghi vizual de 99.7° pe orizontala. Camera va bucura cu imagini clare chiar și in lumina puternica datorită tehnologiei WDR si elimina zgomotul de imagine cu ajutorul functiei 3D DNR.
![ColorVU - Camera AnalogHD 5MP'lentila 2.8mm'lumina alba 20 m - HIKVISION DS-2CE72HFT-F28 [1]](https://rovision.ro/wp-content/uploads/2021/06/36613_img4967large-0.png)
| Specificatii | ||||||||
| Image Sensor | 5 MP CMOS | |||||||
| Signal System | PAL/NTSC | |||||||
| Resolution | 2560 (H) × 1944 (V) | |||||||
| Frame Rate | TVI: 5MP@20fps, 4MP@30fps, 4MP@25fps, 1080p@30fps, 1080p@25fps CVI: 4MP@30fps, 4MP@25fps AHD: 5MP@20fps, 4MP@30fps, 4MP@25fps CVBS: PAL/NTSC |
|||||||
| Min. illumination | 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with White Light | |||||||
| Shutter Time | PAL: 1/25 s to 1/50, 000 s NTSC: 1/30 s to 1/50, 000 s |
|||||||
| Slow Shutter | Max. 16 times | |||||||
| Lens | 2.8 mm fixed lens | |||||||
| Horizontal Field of View | 2.8 mm, horizontal FOV: 99.7°, vertical FOV: 72°, diagonal FOV: 139.8° | |||||||
| Lens Mount | M16 | |||||||
| Day & Night | Color | |||||||
| WDR (Wide Dynamic Range) | ≥130 dB | |||||||
| Angle Adjustment | Pan: 0 to 360°, Tilt: 0 to 75°, Rotation: 0 to 360° | |||||||
| Menu | ||||||||
| White Light | Auto/Off | |||||||
| Image Mode | STD/HIGH-SAT | |||||||
| AGC | Yes | |||||||
| Day/Night Mode | Color | |||||||
| White Balance | Auto/Manual | |||||||
| AE (Auto Exposure) Mode | WDR/BLC/HLC/Global/HLS/Anti-banding | |||||||
| Privacy Mask | 4 programmable privacy masks | |||||||
| Motion Detection | 4 programmable motion areas | |||||||
| Noise Reduction | 3D DNR | |||||||
| Language | English | |||||||
| Function | Brightness, Sharpness, Mirror, Smart Light | |||||||
| Interface | ||||||||
| Video Output | Switchable TVI/AHD/CVI/CVBS | |||||||
| General | ||||||||
| Operating Conditions | -40 °C to 60 °C (-40 °F to 140 °F), humidity 90% or less (non-condensing) | |||||||
| Power Supply | 12 VDC ± 25% *You are recommended to use one power adapter to supply the power for one camera. |
|||||||
| Power Consumption | Max. 3.5 W | |||||||
| Protection Level | IP67 | |||||||
| Material | Main Body: Metal Enclosure: Plastic |
|||||||
Descarca
DVR 4 canale Hikvision TurboHD, Audio
| Model | DS-7104HUHI-K1 | DS-7108HUHI-K1 |
| Recording | ||
| Video compression | H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 | |
| Encoding resolution | When 8 MP Lite mode is not enabled:
8 MP/5 MP/3K/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF When 8 MP Lite mode is enabled: 8 MP Lite/3MP/1080P/720P/WD1/4CIF/VGA/CIF |
|
| Frame rate | Main stream:
When 8 MP Lite mode is not enabled: 8 MP@8 fps/5 MP@12 fps/3K@12 fps/4 MP@15 fps/3 MP@18 fps 1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N) *: 8 MP@8 fps is only available for channel 1 of DS-7104HUHI-K1. When 8 MP Lite mode is enabled: 8 MP Lite/3 MP/1080P/720P/WD1/4CIF/VGA/CIF@15 fps *: 8 MP Lite is only available for DS-7104HUHI-K1. |
|
| Sub-stream:
WD1/4CIF/CIF@25fps (P)/30fps (N) |
||
| Video bit rate | 32 Kbps to 10 Mbps | |
| Dual-stream | Support | |
| Stream type | Video, Video & Audio | |
| Audio compression | G.711u | |
| Audio bit rate | 64 Kbps | |
| Video and Audio | ||
| IP video input1 | 2-ch (up to 6-ch)
Enhanced IP mode on: 4-ch (up to 8-ch), each up to 4 Mbps |
4-ch (up to 12-ch)
Enhanced IP mode on: 8-ch (up to 16-ch), each up to 4 Mbps |
| Up to 8 MP resolution | ||
| Support H.265+/H.265/H.264+/H.264 IP cameras | ||
| Analog video input | 4-ch | 8-ch |
| BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection | ||
| HDTVI input | 8 MP, 5 MP, 4 MP, 3 MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25 | |
| AHD input | 5 MP, 4 MP, 1080p25, 1080p30, 720p25, 720p30 | |
| HDCVI input | 5 MP, 4 MP, 1080p25, 1080p30, 720p25, 720p30 | |
| CVBS input | PAL/NTSC | |
| VGA output | 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz | |
| HDMI output | 1-ch, 1920 × 1080/60Hz, 1280 ×
1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 ×
1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
| Audio input | 1-ch, RCA (2.0 Vp-p, 1 KΩ) | |
| 4-ch via coaxial cable | 8-ch via coaxial cable | |
| Audio output | 1-ch, RCA (Linear, 1 KΩ) | |
| Two-way audio | 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input) | |
| Synchronous playback | 4-ch | 8-ch |
| Network | ||
| Total bandwidth | 96 Mbps | 128 Mbps |
| Incoming bandwidth
(Enhanced IP mode) |
Up to 32 Mbps | Up to 64 Mbps |
| Remote connection | 32 | 64 |
| Network protocol | TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS,
ONVIF |
|
| Network interface | 1, RJ45 10M/100M self-adaptive Ethernet
interface |
1, RJ45 10M/100M/1000M self-adaptive
Ethernet interface |
| Auxiliary interface | ||
| SATA | 1 SATA interface | |
| Capacity | Up to 6 TB capacity for each disk | |
| USB interface | 2 × USB 2.0 | |
| Alarm in/out | N/A | |
| General | ||
| Power supply | 12 VDC, 1.5 A | 12 VDC, 1.8 A |
| Consumption
(without HDD) |
≤ 15 W | |
| Working temperature | -10 °C to +55 °C (+14 °F to +131 °F) | |
| Working humidity | 10% to 90% | |
| Dimensions (W × D × H) | 200 × 200 × 45 mm (7.9 × 7.9 × 1.8 inch) | |
| Weight (without HDD) | ≤ 1.16 kg (2.6 lb) | ≤ 2 kg (4.4 lb) |
Descarca
Sistemele de securitate si supraveghere video nu mai sunt de mult timp doar un moft ci au devenit o necesitate in zilele noastre. Daca majoritatea firmelor au deja instalat un astfel de sistem de alarma sau/si de supraveghere cu camere video aceste sunt tot mai cautate si pentru locuintele personale. In colectia de produse "SafetyGuard Surveillance" se regasesc o gama variata de articole din acest domeniu al securitatii echipate cu cele mai noi tehnologii din industrie atat din gama premium cat si mai accesibile in ceea ce priveste pretul.
Aceste solutii de securitate si supraveghere au evoluat foarte mult in ultima perioada astfel ca puteti gasi variante foarte performante la costuri mai reduse de la sisteme wireless controlabile prin internet pana la calitate video ultra HD 4K. Unul dintre cele mai mari beneficii ale unei case inteligente este acela de a sti ce se intampla atunci cand nu esti de fapt acolo. Indiferent daca va verificati copiii animalele de companie sau o colectie de bijuterii un sistem de securitate la domiciliu sau la firma este un instrument excelent pentru a verifica live prin video aceste lucruri.
Specificatii Sistem supraveghere Hikvision 4 camere interior
Recenzii Sistem supraveghere Hikvision 4 camere interior
Nu au fost găsite recenzii
